Azure DevOps. Configuration

I step

User with "Admin" level permissions:

1. Access the "Company Integration" screen.

2. Click on the “AzureDevOps” tab.

3. Copy the webhook URL.

ІІ step

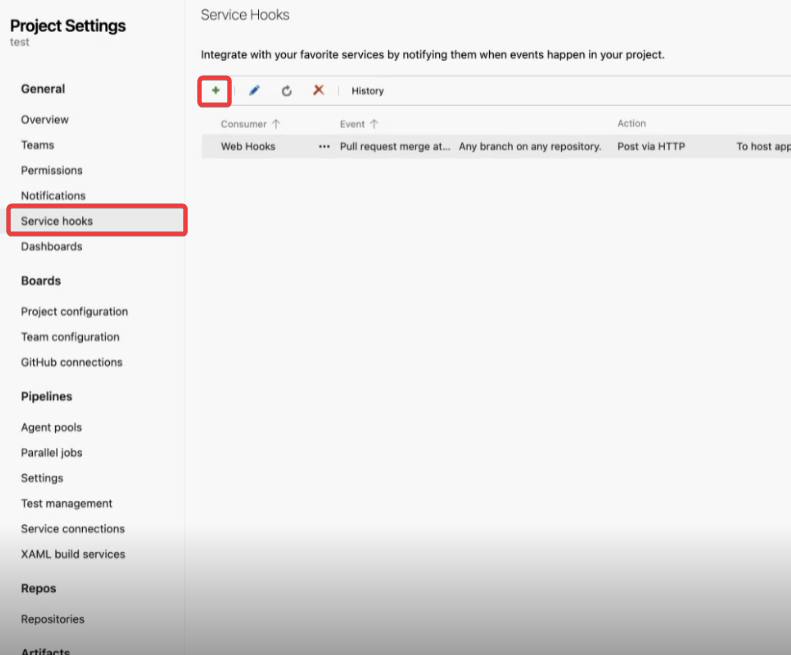

AzureDevOps(screenshot 2)

User with "Admin" level permissions for each project (integration is configured separately for each project):

1. In the working project, navigate to the "Service hooks" page.

2. Click on the “+” button to add a new Webhook.

IІІ step

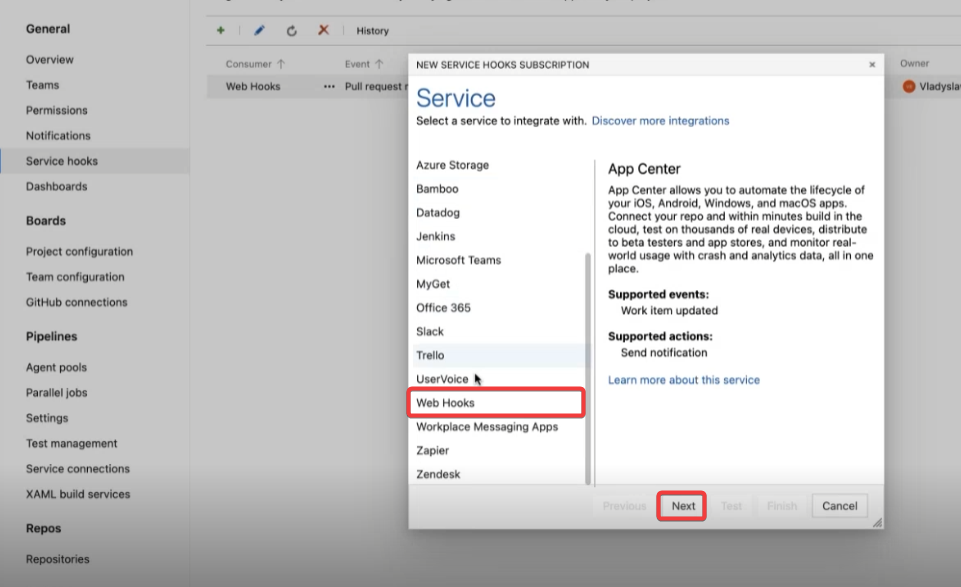

AzureDevOps(screenshot 3)

1. In the opened “New service hook subscription” window, select the “Webhooks” option.

2. Click on the “Next” button.

ІV step

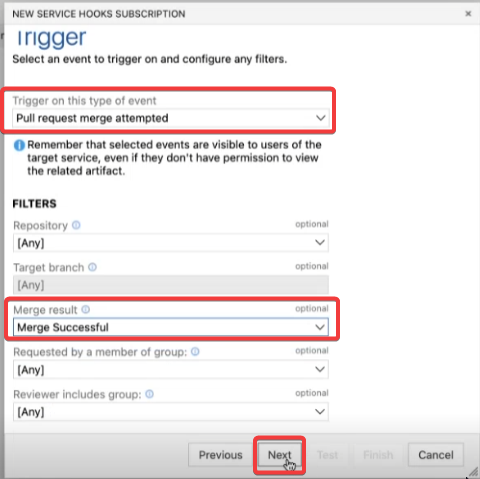

AzureDevOps(screenshot 4)

1. Select Trigger “Pull request merge attempted” and Merge result “Merge Successful.”

2. Click on the “Next” button.

V step

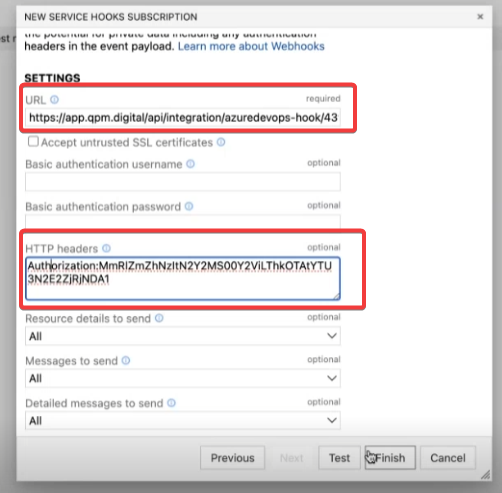

AzureDevOps(screenshot 5)

1. The “Settings” window will open.

2. In the "URL" field, enter the copied link.

VІ step

QPM (screenshot 1)

User with "Admin" level permissions:

1. Return to the "Company Integration" screen.

2. Create a Secret token.

3. Copy the Secret token.

VІІ step

AzureDevOps(screenshot 5)

User with "Admin" level permissions:

1. Return to the "Settings" window.

2. In the "HTTP Headers” field, enter “Authorization:the copied token”.

3. Click on the “Test” button. Check the result.

4. Click on the “Finish” button.

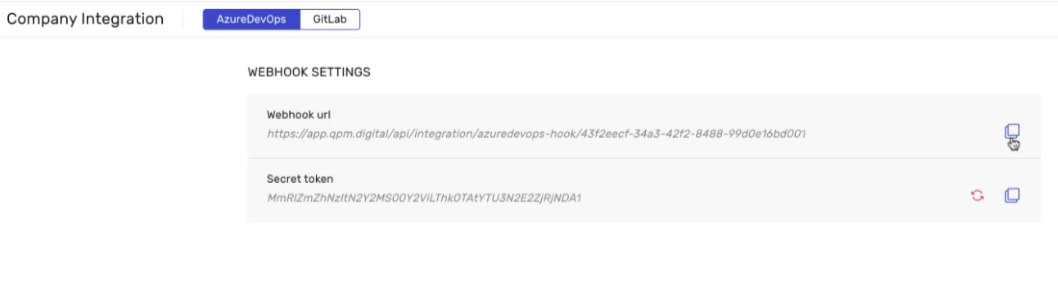

QPM (screenshot 1)



AzureDevOps(screenshot 2)

AzureDevOps(screenshot 3)



AzureDevOps(screenshot 4)



AzureDevOps(screenshot 5)
